CCT Diode for xPROv3

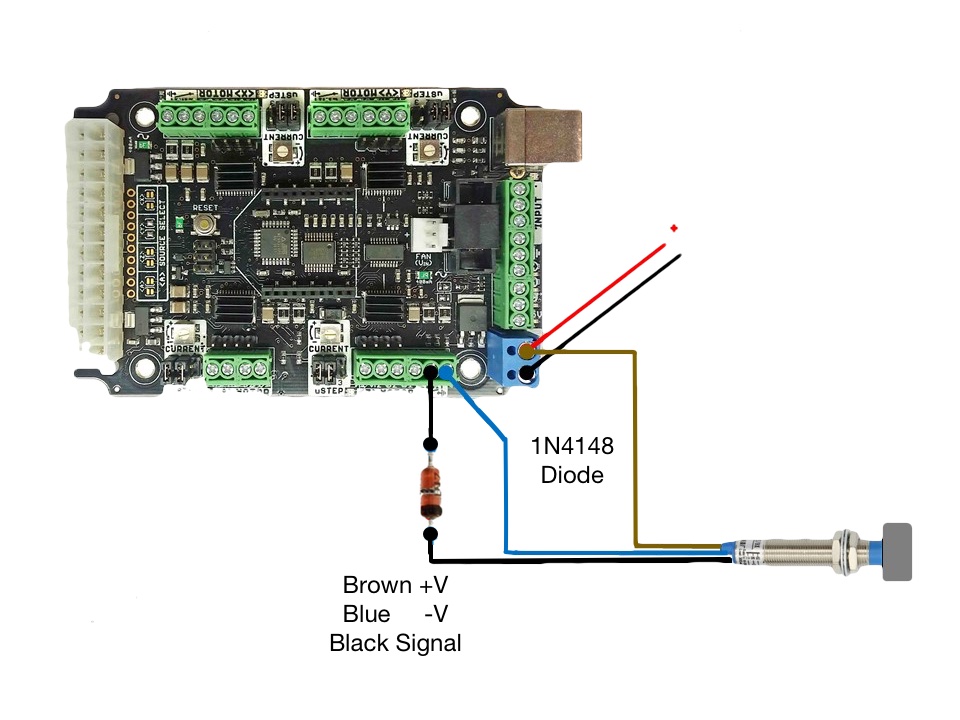

Using a diode to connect a +24v hall effect sensor to a 5v hard limit switch input on a xPRO v3 board

CCT Diode for xPROv3
Jim Chadwick, Mar 13, 2017
