ISO mini v gantry plate for 2040

Discussion in 'Share Parts' started by Masao, May 8, 2017.

  1. Masao

    Masao New
    Builder

    Joined:
    Mar 22, 2016
    Messages:
    5
    Likes Received:
    4
    Does anyone has sketchup model for the mini v gantry plate to be used on 2040 v-slot rail? I was going to use 2020 mini v gantry plate but I need the v-wheels to be able to ride on 2040 rails.

    #1 Masao, May 8, 2017
  2. Masao

    Masao New
    Builder

    Joined:
    Mar 22, 2016
    Messages:
    5
    Likes Received:
    4

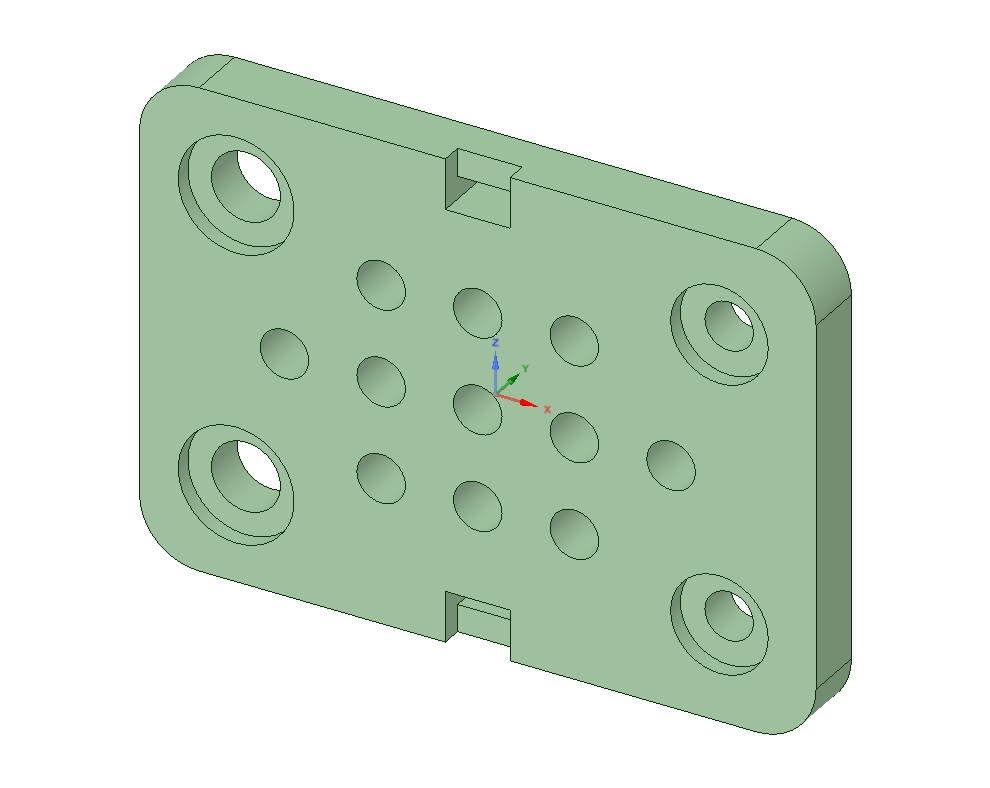

    Here is the model for the 2040 mini v plate. I designed using the Designspark Mechanical and exported to Sketchup.
    mini v 2040 plate and rail.png


    Attached Files:

    #2 Masao, May 9, 2017
    Nat972 likes this.
  3. Masao

    Masao New
    Builder

    Joined:
    Mar 22, 2016
    Messages:
    5
    Likes Received:
    4

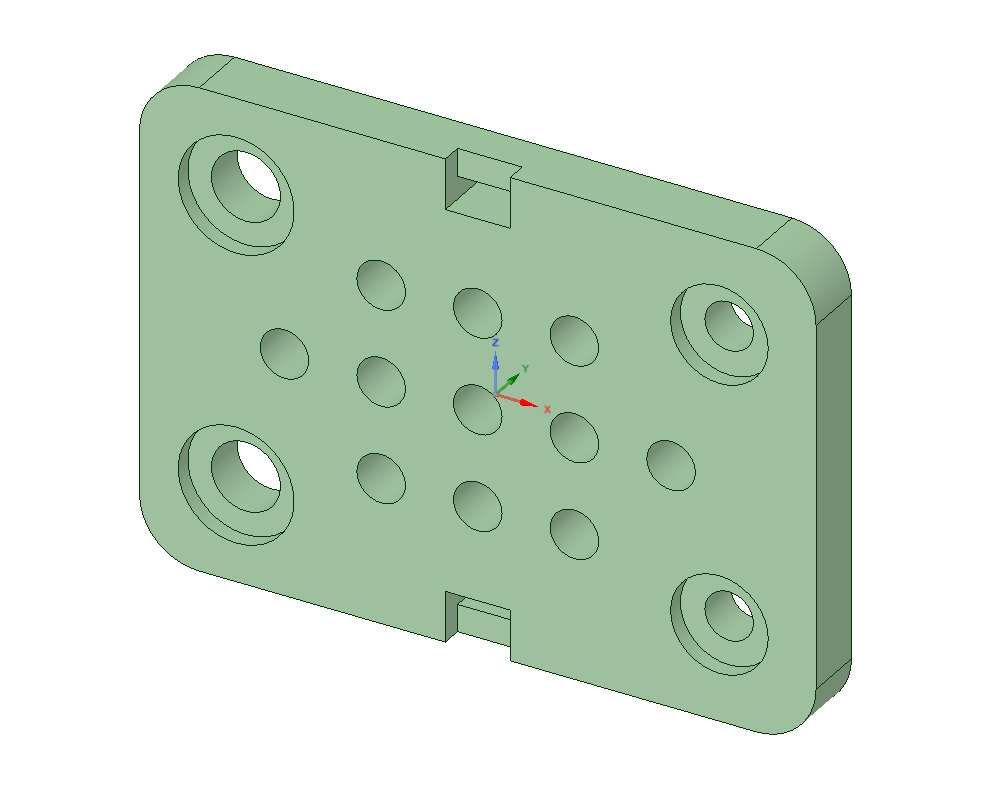

    Few more images.
    image1.jpg image2.jpg image3.jpg image4.jpg

    #3 Masao, May 9, 2017
  4. Masao

    Masao New
    Builder

    Joined:
    Mar 22, 2016
    Messages:
    5
    Likes Received:
    4
    Thanks, I'm thinking about using as X gantry plate to house my CO2 laser focus head. I wanted to keep it compact so that I get maximum movement on X axis travel.

    #4 Masao, May 9, 2017
  5. crispin

    crispin New
    Builder

    Joined:
    Jun 21, 2016
    Messages:
    49
    Likes Received:
    9
    Yeah! Add a 3rd hole between the existing pairs for an additional *centered* belt-attachment option.

    #5 crispin, May 13, 2017
  6. Masao

    Masao New
    Builder

    Joined:
    Mar 22, 2016
    Messages:
    5
    Likes Received:
    4

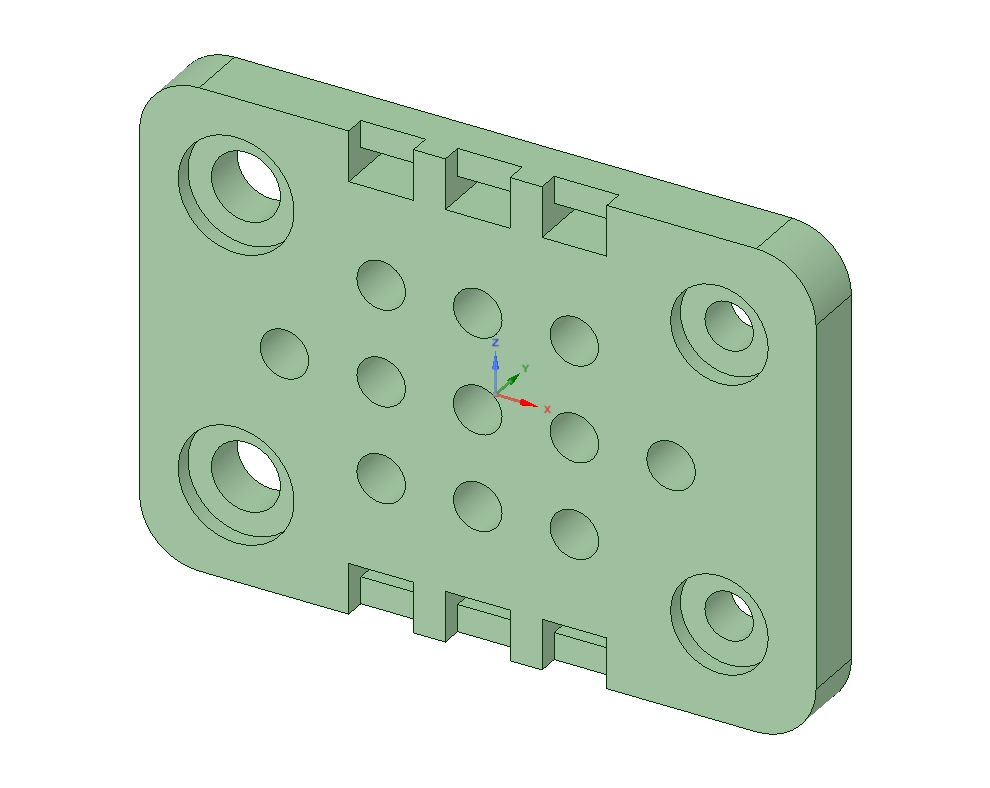

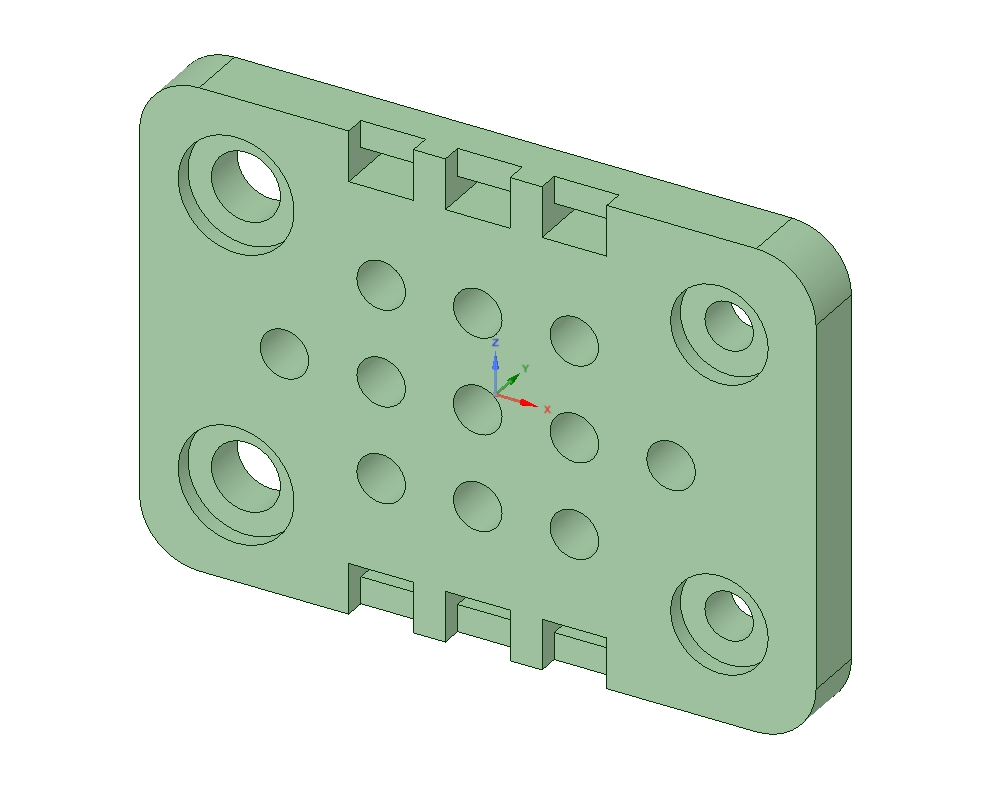

    Here are versions with centered belt attachment.
    mini v 2040 platev2.jpg mini v 2040 platev3.jpg


    Attached Files:

    #6 Masao, May 15, 2017
    ArrArr, crispin and Grantman like this.
  7. 3DPDude

    3DPDude New
    Builder

    Joined:
    Mar 29, 2018
    Messages:
    2
    Likes Received:
    0
    Hi;

    thanks for designing this!!!! I have a q tho: why are two holes larger than the other two?

    Thanks!!

    #7 3DPDude, Jul 6, 2018
  8. Giarc

    Giarc OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Jan 24, 2015
    Messages:
    3,008
    Likes Received:
    1,676
    Eccentric spacers need the larger holes.

    #8 Giarc, Jul 9, 2018
  9. 3DPDude

    3DPDude New
    Builder

    Joined:
    Mar 29, 2018
    Messages:
    2
    Likes Received:
    0
    Thanks!!!

    what are the dimensions of this part?

    #9 3DPDude, Jul 25, 2018
  10. tulayha

    tulayha New
    Builder

    Joined:
    Jan 28, 2021
    Messages:
    1
    Likes Received:
    0
    Hi, a couple years late but could someone provide any other format then sketchup? i cant find any models for a 2040 plate anywhere else

    #10 tulayha, Jan 28, 2021
