Removing relay func

Discussion in 'Laser Cutters' started by darrepac, Dec 14, 2020.

  1. darrepac

    darrepac New
    Builder

    Joined:
    Feb 28, 2017
    Messages:
    54
    Likes Received:
    9
    Hi

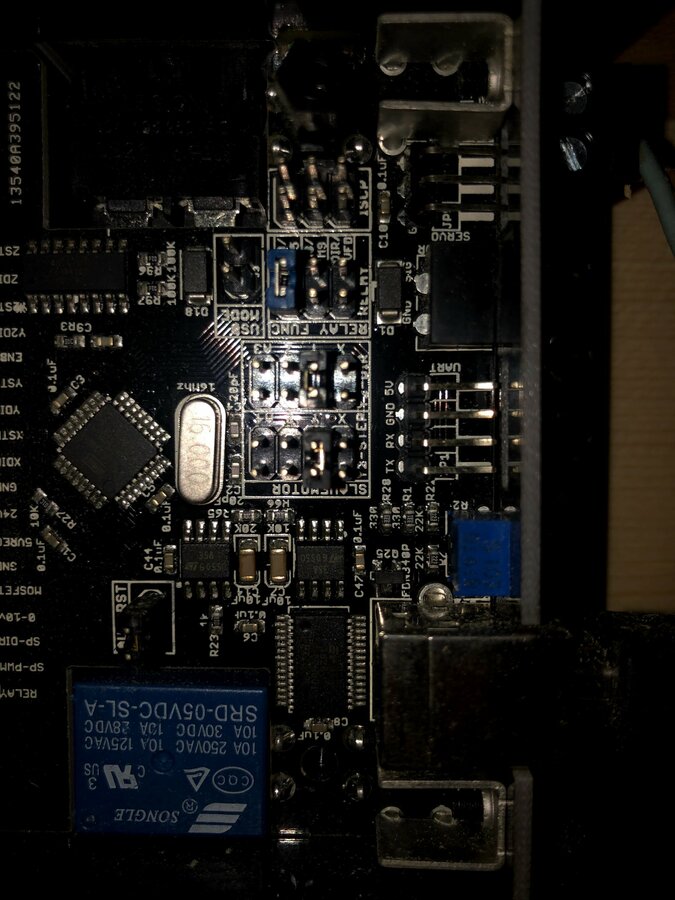

    While trying to install a diode laser to my LEADCNC 1010 I realize something weird: by blackbox board is not 100% similar to the one from the documentation. And particularly, the "relay func" is not exactly as shown in the doc or vid.
    Look at mine (attached) instead of having 3 pins, the relay func has 6 pins. Why? A previous revision board?

    #1 darrepac, Dec 14, 2020
  2. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    14,918
    Likes Received:
    4,291
    docs:blackbox:jumper-relay [OpenBuilds Documentation] matches your version

    And correct, it is a constantly updated product - v2.4s through v2.7s out in the wild at the time of writing

    #2 Peter Van Der Walt, Dec 14, 2020
  3. darrepac

    darrepac New
    Builder

    Joined:
    Feb 28, 2017
    Messages:
    54
    Likes Received:
    9
    Good, thanks!
    The revision number is written somewhere on the board?

    #3 darrepac, Dec 14, 2020
  4. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    14,918
    Likes Received:
    4,291
    Yes its printed on the boards:

    For example
    [​IMG]

    #4 Peter Van Der Walt, Dec 14, 2020
    sharmstr likes this.
  5. darrepac

    darrepac New
    Builder

    Joined:
    Feb 28, 2017
    Messages:
    54
    Likes Received:
    9
    I am an happy owner of v2.7
    thanks again for the support...hope I will not need more for this laser setup ;)

    #5 darrepac, Dec 14, 2020
    Peter Van Der Walt likes this.
