Large floor or wall mounted plotter design.

plotter drawbot cnc
Page 2 of 2
  1. Steven Busch

    Steven Busch New
    Builder

    Joined:
    Dec 30, 2013
    Messages:
    25
    Likes Received:
    4

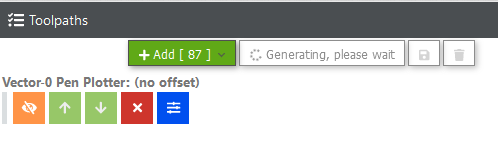

    I noticed this error. upload_2020-6-15_10-56-26.png

    #31 Steven Busch, Jun 15, 2020
  2. Peter Van Der Walt

    Peter Van Der Walt OpenBuilds Team
    Staff Member Moderator Builder Resident Builder

    Joined:
    Mar 1, 2017
    Messages:
    15,050
    Likes Received:
    4,313
    A) overcomplicated svg (familiarise yourself with the Simplification tools in most vector editors)
    B) embedded content which is not path data
    C) forgot to convert text/shapes to paths

    Include the troublesome SVG files and an OBC export (CAM > File > Save Workspace .obc) - without files we can only offer guesswork

    #32 Peter Van Der Walt, Jun 15, 2020
    Last edited: Jun 15, 2020
