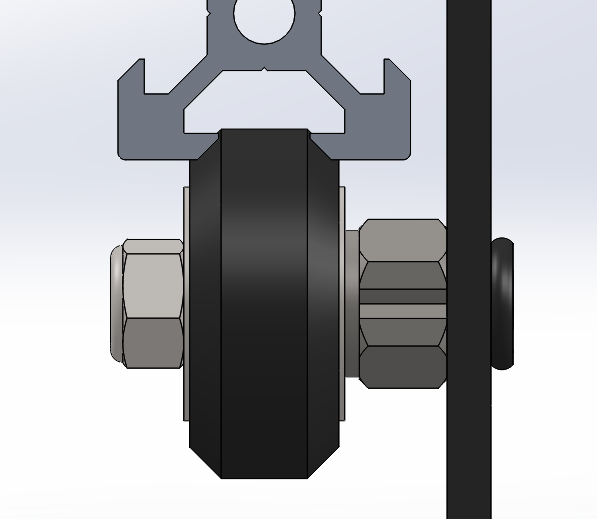

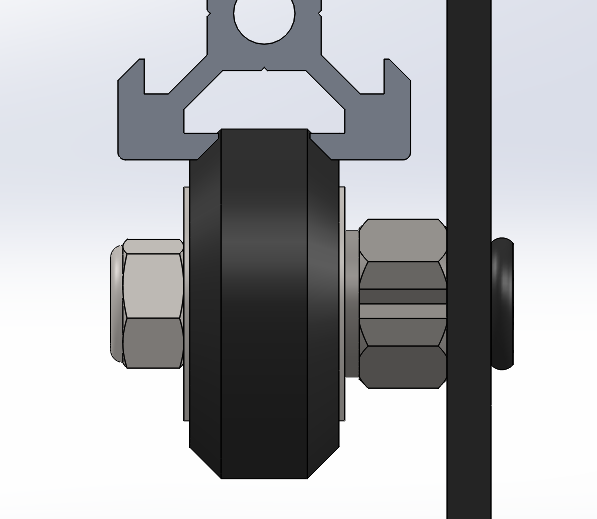

   This is the V-slot belt example, but the wheels are through the profile. Is it supposed to be drawn like this?




   Attached Files:

   •


     File size:

     38.8 KB

     Views:

     1

   #1 ChwanPang, Jan 24, 2022
2.

   Peter Van Der Walt OpenBuilds Team

   Staff Member Moderator Builder Resident Builder

   Joined:

   Mar 1, 2017

   Messages:

   15,191

   Likes Received:

   4,346

   Yes, mostly irrelevant, as the eccentric spacers allows adjustment to fine tune the final spacing / preload
